CM0 NANO is a high-quality single-board computer that is industrially designed by the EDATEC team by integrating the well-known Raspberry Pi Compute Module 0 with a wide range of interfaces and powerful hardware capabilities, in such a way that is fully applicable to embedded and industrial applications.
Its core is the CM0 NANO with a 1 GHz quad-core 64-bit Arm Cortex-A53 processor and either 512 MB of RAM and 8 GB or 16 GB of eMMC optional storage, which can easily manage an array of light computing loads. Hwcd equally supports video encode and decode at 1080p30 and OpenGL ES graphics with a built-in VideoCore GPU, so there are no issues with the touchiness of the graphics applications.
The CM0 NANO offers one of its strongest aspects, its design, which is industrial-enhanced. The board comes with an RTC (real-time clock), and a hardware watchdog is reliable in ensuring continuous work under harsh conditions with a conventional temperature range. It also brings in USB Type-C power input, several USB 2.0 ports, HDMI output, and 100 M Ethernet, which provide essential connections with Industrial and IoT applications.

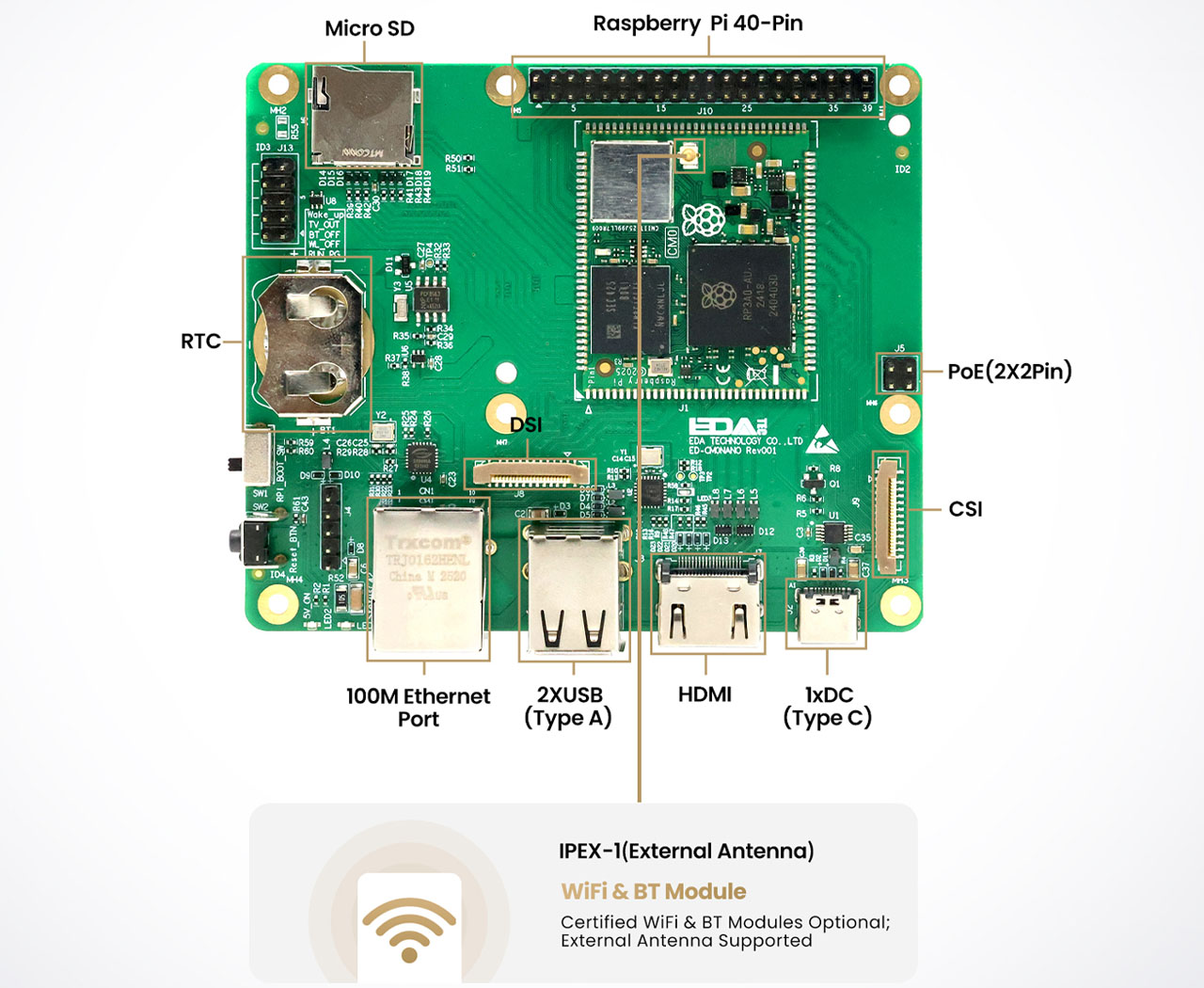

The board is easy to extend with the standard Raspberry Pi 40-pin GPIO header, MIPI DSI and CSI display and camera connectors, and optional Wi-Fi/Bluetooth support, which makes it a great option to prototype and deploy on a fast footing applications such as IoT gateway, automation control units, and custom embedded systems. Moreover, it compiles Raspberry Pi OS by default and accesses the rich software portfolio already known to developers all over the world.
The EDATEC CM0 NANO single-board computer can be purchased via key electronic distributors like DigiKey and Mouser, or local resellers. The pricing is usually between $55-$75, depending on the configuration, order quantity and optional eMMC storage. The stock, whether available or out of stock, will differ depending on the distributor, with some distributors having the boards available immediately and others receiving the board on back order and providing them with lead times, so searching through the local distributor listings will give the most up-to-date pricing and delivery information. You may learn more about the product on the product page.
