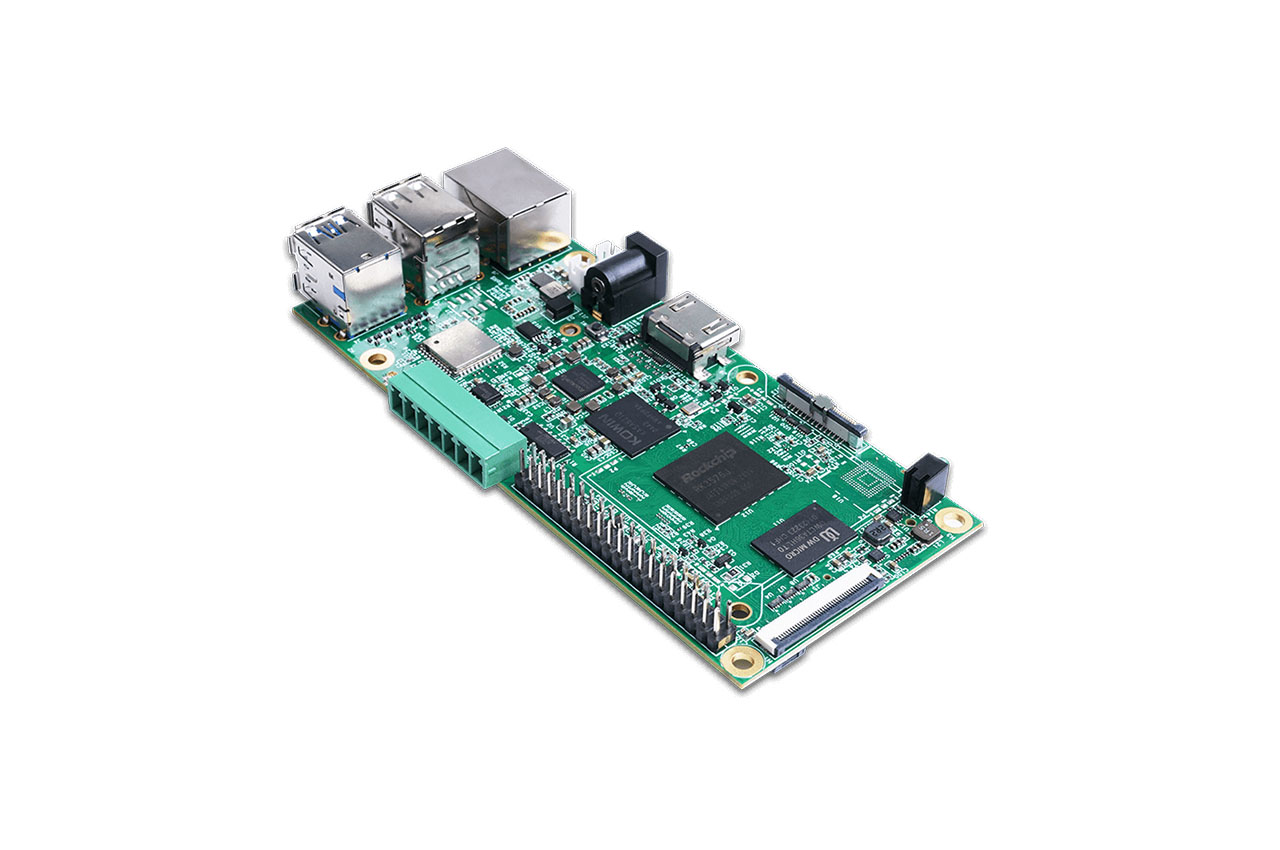

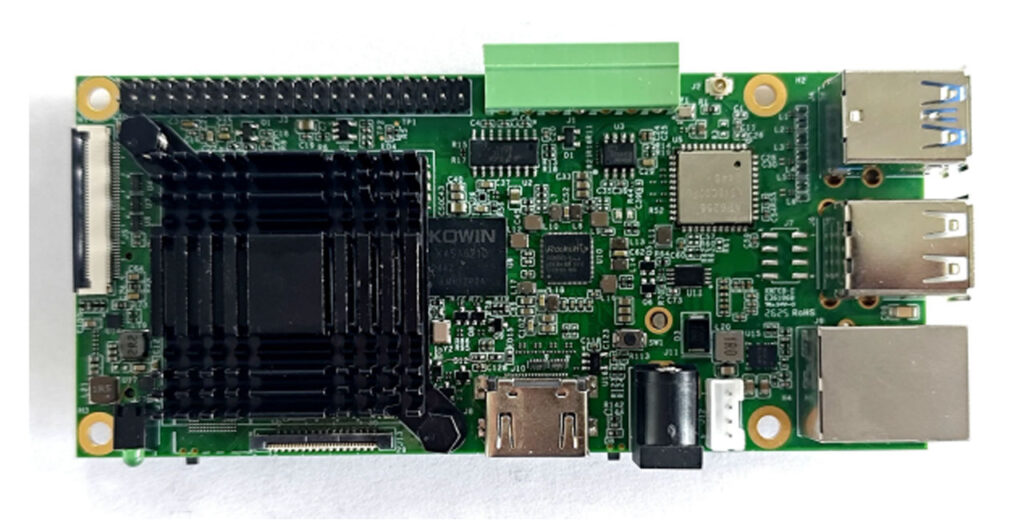

Geniatech has introduced the XPI-3576, an industrial single-board computer (SBC) powered by the Rockchip RK3576 SoC and paired with a Hailo H8 AI accelerator module. The SBC is Raspberry Pi compatible, supporting Pi accessories and offering a 40-pin GPIO header, while delivering higher performance for AI, industrial, and multimedia applications.

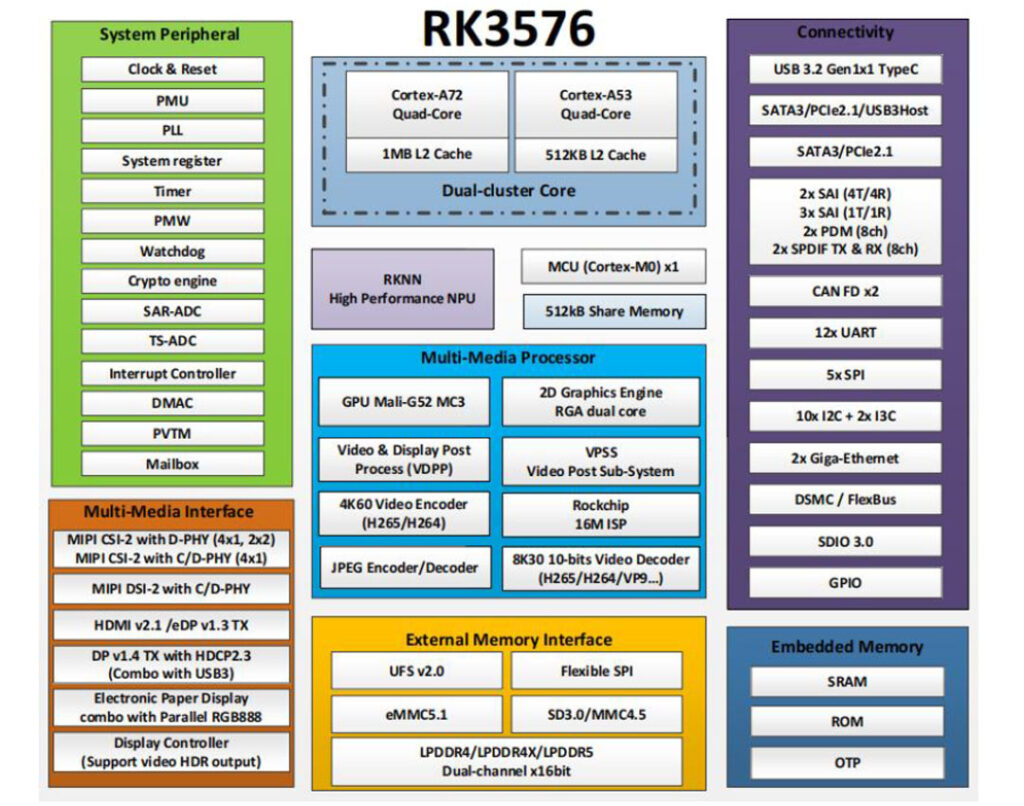

With its quad-core Cortex-A72 CPU, quad-core Cortex-A53 real-time cores, and an integrated NPU delivering 6 TOPS (INT8), the XPI-3576 targets workloads in machine learning, computer vision, and edge computing. Connectivity and expansion options include Gigabit Ethernet, WiFi 5, Bluetooth 5.0, four USB ports (2x USB 2.0, 2x USB 3.0), PCIe 3.0, MIPI-CSI, MIPI-DSI, and HDMI 2.1 output up to 4K@120Hz (10-bit), as well as industrial interfaces such as CAN, RS-485, and RS-232.
The company build the board for industrial environments, enabling it to operate in a wide temperature range from -40°C to +85°C, and it consumes just 0.6W at idle and about 2.76W under full load. The board runs Debian 12 and Android 14 emulator systems, enabling smooth migration of existing Raspberry Pi applications, while supporting Power-over-Ethernet (PoE) for flexible networked deployments.
XPI-3576 Industrial AI SBC features:
- SoC: Rockchip RK3576 (4x Cortex-A72 + 4x Cortex-A53)
- AI: Hailo H8 module, 6 TOPS INT8 NPU
- Memory: 4GB RAM (8GB/16GB optional)
- Storage: 32GB eMMC (up to 128GB) + microSD card slot
- Video: HDMI 2.1 (4K120Hz), MIPI-DSI, MIPI-CSI
- Networking: 1x Gigabit Ethernet, WiFi 5, Bluetooth 5.0, PoE
- I/O: 40-pin GPIO, CAN, UART, RS-232, RS-485, PCIe 3.0, USB 2.0/3.0
- Misc: RTC, Watchdog
- Power: 12V DC input
- Dimensions: 125 x 56 x 22.6 mm
If you want to take more references, then you should check the XpressReal T3 AI SBC, the Ebyte ECB31-PB, and the pico2-ice. I want everyone to learn about these SBCs, cause these are all related to Raspberry Pi in some way, and the XPI-3576 is fully compatible with Raspberry Pi accessories and applications.
Geniatech has not disclosed the pricing or availability of the XPI-3576 SBC yet. Interested users can expect more details to be shared through the company’s official website (with a user guide and datasheet) or authorised distributors once the board is officially released.
