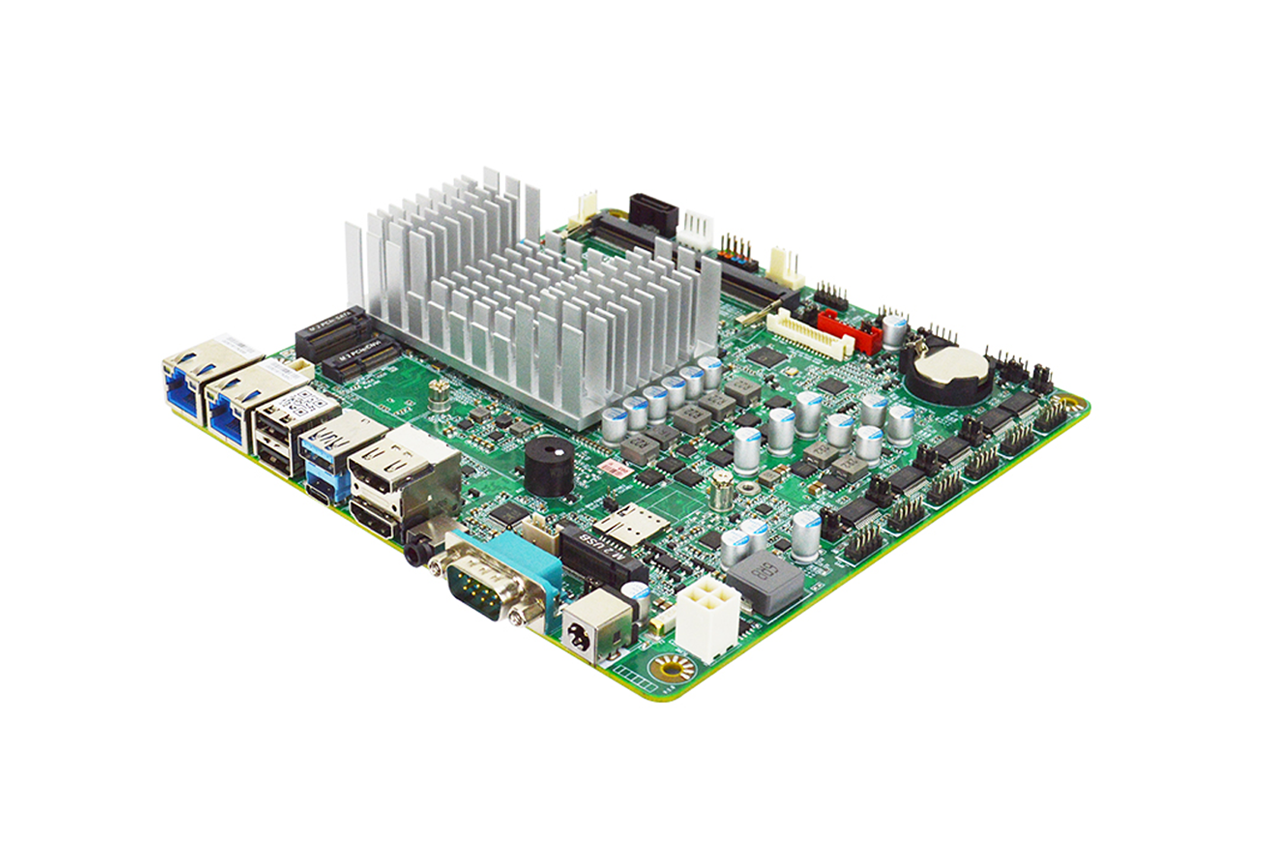

Jetway’s MTX-TWL1 is a fanless industrial Mini-ITX SBC built around Intel Atom N250 or N150 (Twin Lake) processors with 6W TDP, designed for embedded and IoT applications. The most interesting features of this motherboard is that it has a compact size, a wide input voltage range (12–28V), and multiple connectivity options.

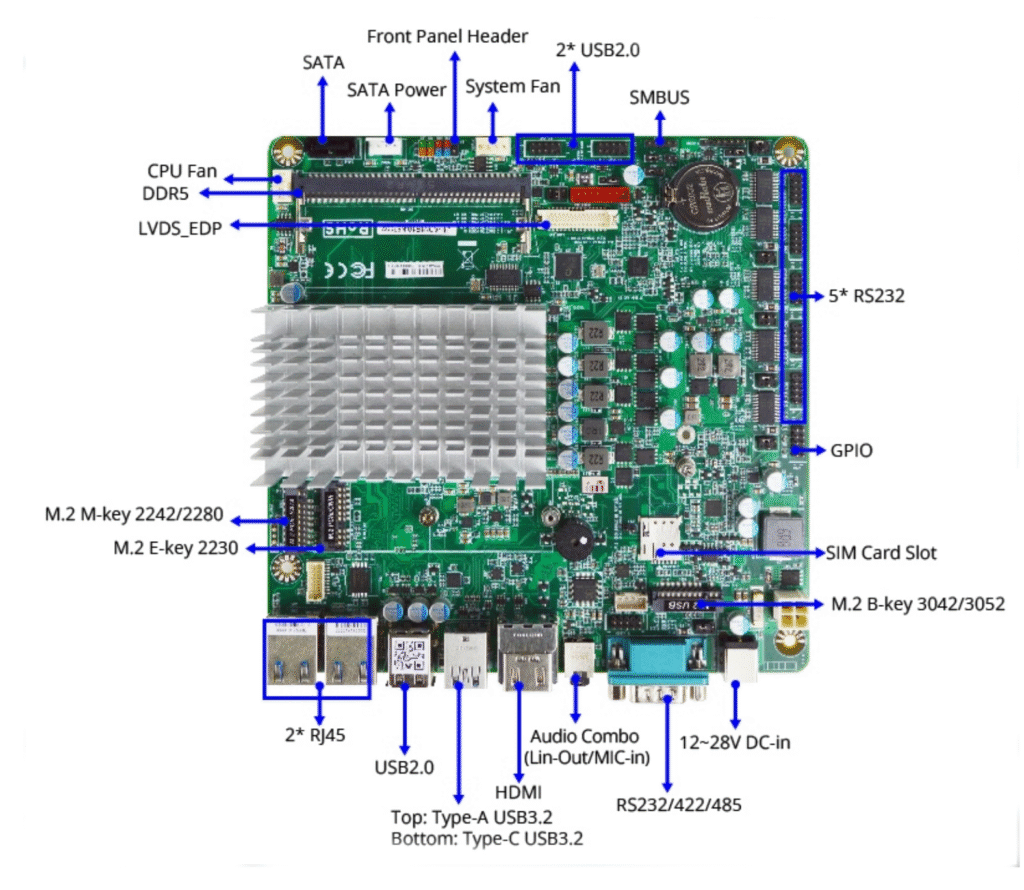

It supports up to 32GB DDR5 memory, triple 4K display output (Type-C DP, dual HDMI 2.0b, LVDS/eDP), dual 2.5GbE LAN, and a range of expansion via SATA, M.2 M-key NVMe, E-key, and B-key for wireless or 4G/5G modules. The board also features six COM ports, USB 3.2 Gen 2, USB Type-C with DP Alt Mode, GPIO, and wide 12–28V DC input for industrial flexibility. Operating temperature ranges from -20°C to 60°C, with TPM 2.0 security options, making it suitable for kiosks, digital signage, automation, and networked edge systems.
In terms of software, the company mentions that this Twin Lake industrial SBC has support for Linux, Windows 10, and Windows 11 operating systems. But at the time of writing, the drivers for the motherboard are not available on the company’s website.
Jetway has not released any pricing information for the motherboard at the time of writing. Pricing inquiries can be made by filling out the online form, and additional details are available on the products page.
Niladri Chowdhury
