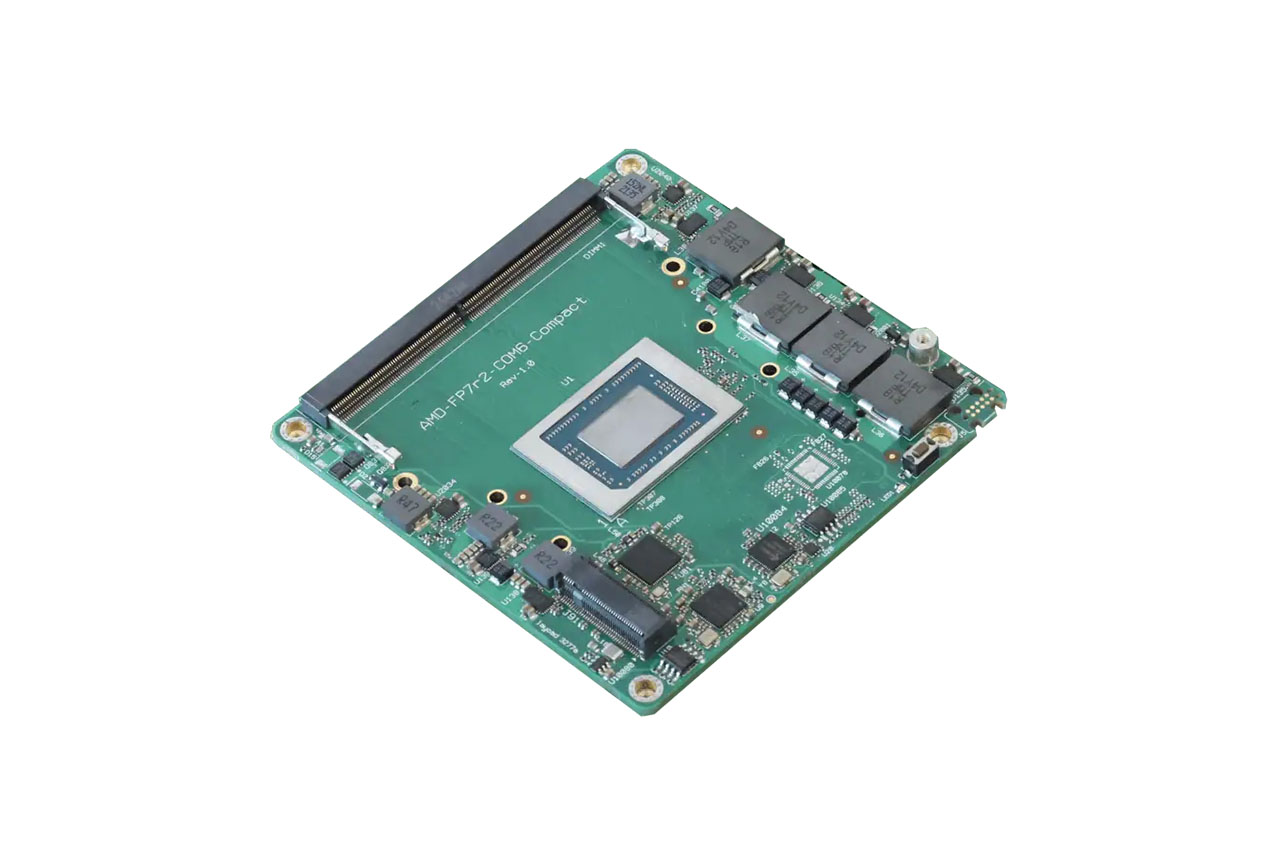

The SolidRun Ryzen R8000 COM6 Compact Module is a performance embedded computing product enabling high-performance computing, graphics, and AI to be introduced to industries and IoT systems. Featuring the AMD Ryzen Embedded 8840U Series and based on the COM Express Type 6 Compact standard, this chip provides a high-performing combination of compute efficiency, scalability, and modular flexibility that is useful in demanding edge systems.
If you have less knowledge about this type of product, you can check out the AAEON HPC-ARHm, the Banana Pi BPI-CM6 and BPI-SM9 for your reference.
Ryzen R8000 COM6 Compact Module Specifications and features:
The module in its barebones form features an 8-core, 16-thread Zen 4 chip running at a base clock of 3.3 GHz with reaching peak boost frequencies up to 5.1 GHz, as well as an AMD Radeon 780M graphics card, which is capable of providing good graphics performance. The design has an AMD Xdna Neural Processing Unit (NPU) with a certain peak of 16 TOPS, and a total processor throughput of 39 TOPS by a combination of the load between the GPU and the CPU, allowing significant horsepower in edge cases of the artificial intelligence field.
The module has a maximum memory capacity of 128 GB of DDR5-5600 memory supported by two SO-DIMM sockets, and an optional ECC, which increases reliability, but can support an M.2 NVMe SSD of high-speed onboard storage. An Intel i226 2.5 GbE controller is used to handle networking, and a rich array of I/O options is exposed by the COM Express interface, such as PCIe Gen4 (16 lanes), a number of DisplayPort outputs, SATA, a variety of USB ports, and UART serial ports. Additional security features, including dTPM 2.0 and BMC readiness, also make it more suitable for the system integration of the industrial system.
Use case and Software support:

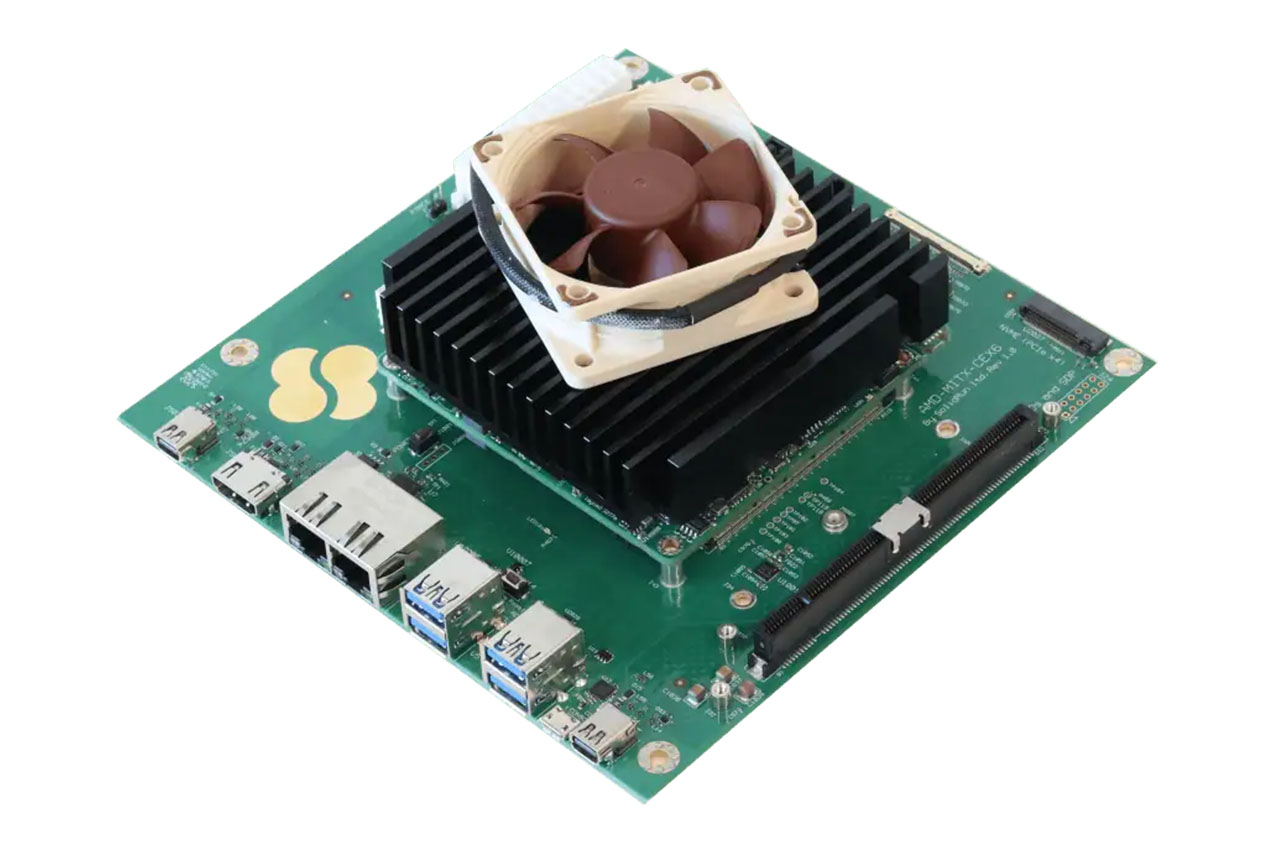

The COM6 Compact form factor, which measures 95 × 95 mm, has a small footprint, yet still allows a wide compatibility range with off-the-shelf and custom carrier boards, saving embedded product design significantly in terms of time-to-market. The temperature operating range also works in commercial and industrial conditions, and standard 12 V operation with optional 5 V standby. The module works with mainstream operating systems, Windows 10/11, and Linux (Ubuntu, Yocto, Debian), and increases development and deployment possibilities.
This high-performance, large I/O, and modular flexibility make the Ryzen R8000 COM6 Compact Module an attractive solution in hundreds of applications where embedded module interfaces are needed, edge AI functionality is required, medical imaging, smart infrastructure, transportation systems, and digital signage applications, successfully blending embedded module software standards with next-generation compute requirements.
There is no publicly reported price of the Ryzen R8000 COM6 Compact, but SolidRun is selling it by request-for-quote through the official product page. Pricing depends on configuration, memory options, and order quantity. Availability is handled directly through SolidRun’s sales team, and units can be ordered once a quote is confirmed, with stock varying by model and industrial-grade options.
